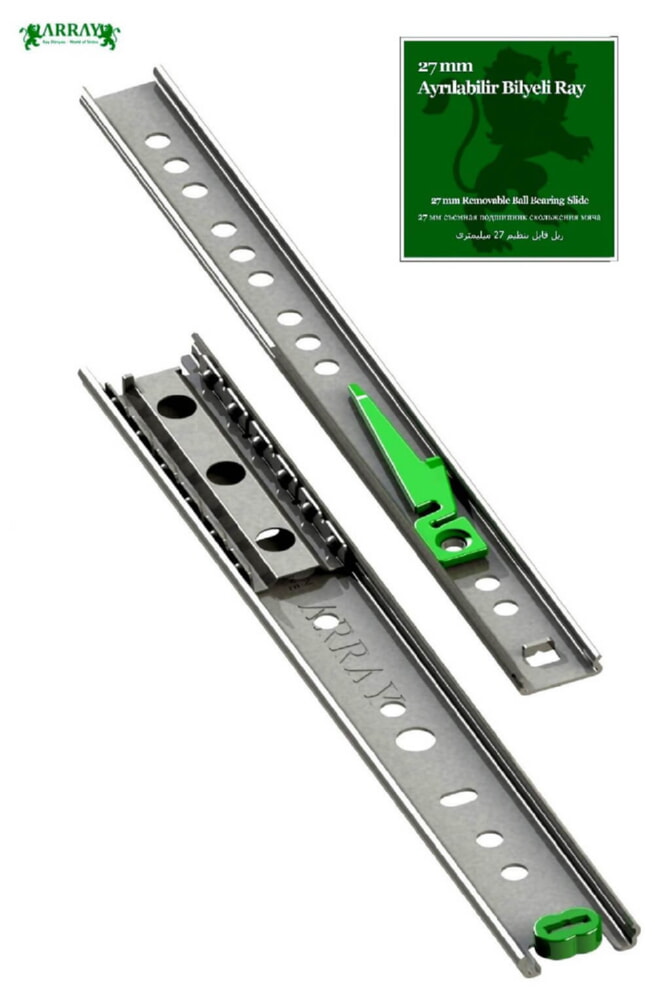

27mm TAKE OUT DRAWER BALL BEARING SLIDE TECHNICAL SPECIFICATIONS

Product Name :  27 mm Take Out Drawer Ball Bearing Slide
Slide Length : 214-246-278-310-342-374-406-438–502 mm
Loading Capacity : 15 kg (including drawer box)
Metal Thickness : Inner Part:1.20 mm / Outer Part:1.20 mm

Production Technology
All slides are producing at our Full Automation Ball Bearing Slide Production Facility.
Inner and Outer Slide can be took out from each other like telescopic slide. It provides an easiness for assembly.
There are two types of production; Glossy coated with DKP steel metal and Dull coated with galvanize. Their all quality and characteristics are the same.
Due to our exclusively patented design, it is the only and strongest ball bearing slide in Turkey  featured of not being dispersed.
Based on the request, manufactured with stopper, acting as strengthener and secondary bedding.
Based on the request, it is manufactured as standard/with stopper.
They are the most economical and preferred type of ball bearing slides for series production companies.
All products are manufactured with ISO 9001: 2015 Quality System.
All products are certificated by TÜV Rheinland LGA which subjected to all international validity tests.
Additionally, certificated by ROHS which is safe for human health.

Type of Material
GALVANIZED Type of Inner and Outer Material : Special Quality Galvanized Sheet Metal
GLOSSY Type of Inner and Outer Part Material: Special Quality DKP(Ungalvanized) Sheet Metal is used.
Covered with Zinc Cr+3 which is safe for human health
Type of Metal Ball Bearing Bedding Material: Special Quality Galvanized Sheet Metal
Type of Steel Ball Bearing Bedding Material:Special Quality High Carbonized Steel

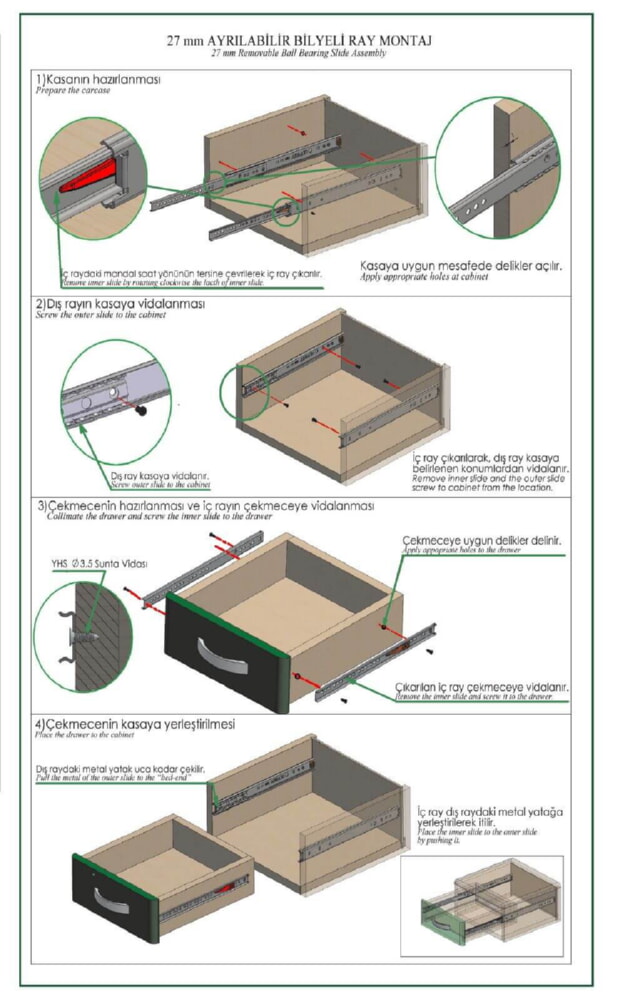

ASSEMBLY

There are 32 and multiples which are the international standards.
Does not open any groove to the drawer.
It screws down to the drawer box with only 2 screws (YHB M4 Bolt or YHB Ø 3.5 Chipboard)
The space between the case and the drawer box is left as 10 mm.

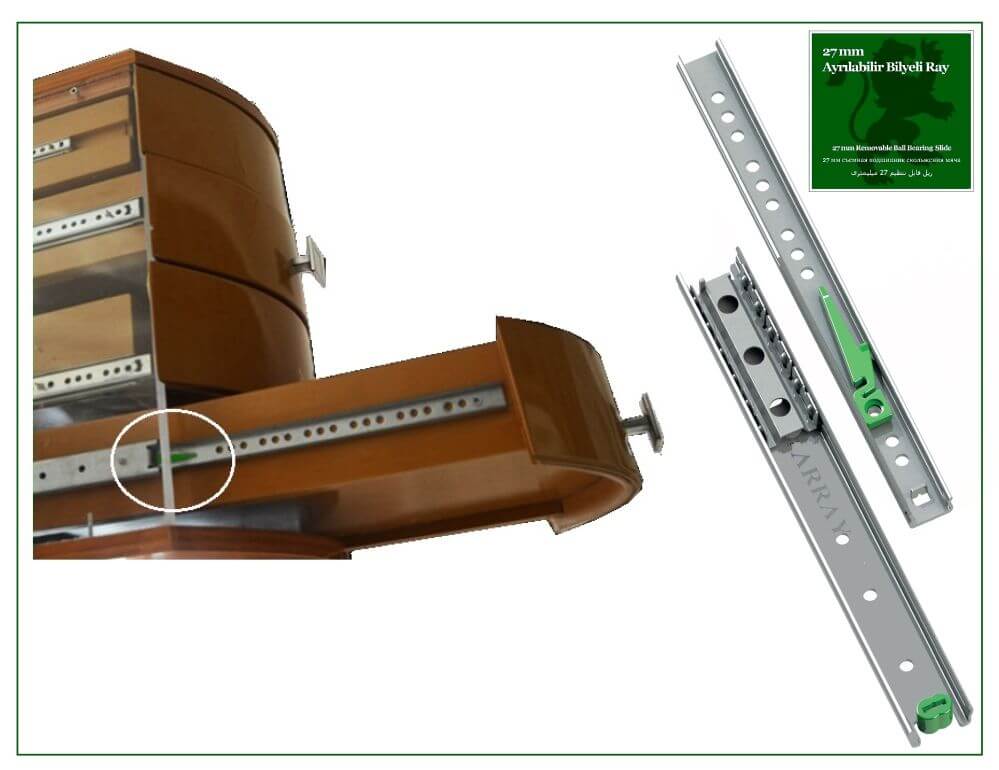

With the help of the locking latch on drawer slide, the slides can disassembly from each other.
Drawer box can be removed from the case.
